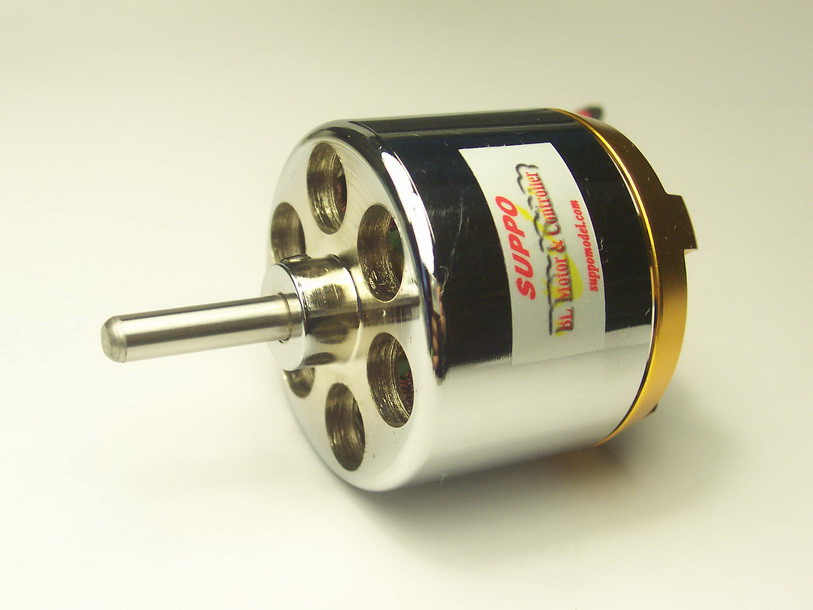

                    Brushless
                                 - Outrunner Motor

                    U3520
                                  Specification





                        Ideal to work
                            with 50A or 60A ESC





                          | Part No. |
                          No.
                                  Of cells |
                          RPM/V |
                          Max.
                                  efficiency
                                  current |
                          NoLoad
                                  current / 10 V |
                          Current
                                  capacity |


                          | Ni-MH |
                          Li-Poly |


                          | U3520/6 |
                          8-20 |
                          3-7 |
                          840
                                  KV |
                          18-40A
                                  (>75%) |
                          2.1
                                  A |
                          50A/60
                                  s |



                           |

                           |

                           |

                           |

                           |

                           |

                           |








                          | Part No. |
                          Max.
                                  efficiency |
                          Shaft
                                  diameter (mm) |
                          Weight
                                  with cables |
                          Internal
                                  Resistance |
                          Dimensions
                                  (mm) |


                          | U3520/6 |
                          82% |
                          5 mm |
                          200
                                  g |
                          50
                                  mOhm
                                 |
                          42
                                  x 47 |



                           |

                           |

                           |

                           |

                           |

                           |








                          | Part
                                  No. |
                          Recomended model
                                    weight |
                          Recommended prop
                                  without gearbox |


                          | U3520/6 |
                          1500 - 2800 g |
                          12
                                  cell
                                  12"x6" |
                          4s
                                   12"x6"
                                 |

                           |



                           |

                           |

                           |

                           |

                           |
